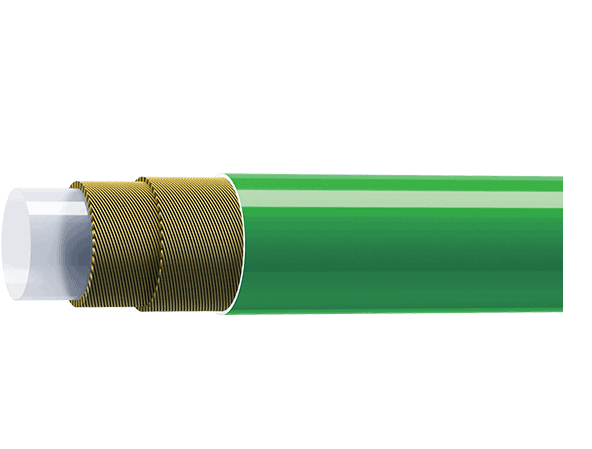

Ultra high pressure resin hose W.P:17400PSI

Scope of application ： used in very high pressure application environment, such as cleaning the inner tube of heat exchanger in industries such as chemical and oil refining

Pressure range： 690~1200 bar (10000 ~ 17400 psi)

Features：high wear resistance

Features： small volume expansion under pressure

Joint:：optional with integrated cartilage dry joint

Product Parameter：

Part number	Hose size			ID		OD		WP
Part number	dash	inch	DN	mm	inch	mm	inch	bar	psi
2S-3-1040	-2	1/8	3	3.5	0.138	7.2	0.283	1040	15000
2S-4-1200	-	5/32	4	4.1	0.161	8.2	0.323	1200	17400
2S-5-1040	-3	3/16	5	5.2	0.205	9.8	0.386	1040	15000
2S-6-1040	-4	1/4	6	6.4	0.252	11.5	0.453	1040	15000
2S-8-1040	-5	5/16	8	7.9	0.311	13.7	0.539	1040	15000
2S-10-690	-6	3/8	10	9.9	0.390	16.4	0.646	690	10000
2S-12-690	-8	1/2	12	12.8	0.504	20.4	0.803	690	10000
