PTFE high-pressure multifunctional industrial hose
Application：Widely used in chemical, steel, construction, food, medicine and other fields. The product is suitable for high temperature working environment. Its super corrosion resistance makes it free from various corrosive liquid chemicals (sulfuric acid, Hydrochloric acid, sulfur reactants, etc.) erosion. The fully saturated nature of PTFE / PFA also makes it a good choice for tubes in the food and pharmaceutical industries
Inner layer：PTFE
Reinforcement layer：2-4 layers of super high flexible steel wire
Outer layer：EPDM / FKM
Temperature range：-30 ℃ ~ + 220 ℃ (-22 ℉ ~ + 428 ℉)
Reference standard：EN12115
Customized scope：can customize 4 'and inner diameter of hose

Product Parameter：


SIZE

I.D.

W.P.

B.P.

(in.)

(mm)
（MPa）
（MPa）
3/16"-2
5
42
166
1/4"-2
6
40
160
5/16"-2
8
35
140
3/8"-2
9
33
132
1/2"-2
12
28
110
5/8"-2
16
25
100
3/4"-2
19
22
85
1"-2
25
17
65
1 1/4"-2
31
13
50
1 1/2"-2
38
9
36
2"-2
50
8
32
1/2"-4
12
50
166
5/8"-4
16
45
180
3/4"-4
19
42
168
1"-4
25
38
152
1 1/4"-4
31
33
130
1 1/2"-4
38
29
116
2"-4
50
25
100
ONLINE SERVICE
Your Satisfactionls Our Successe
lf you are looking for related prod-ucts or have any otherquestions pleasefeel free to contact us.
You can also give us a messagebelow , we will be enthusiastic for your service.
Contact us
+86 16650911696
Related Products

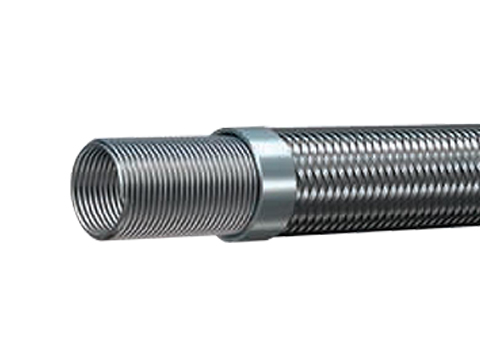

Stainless steel narrow corrugated metal hose
